Nux Loop Core Looping Pedal/Mono

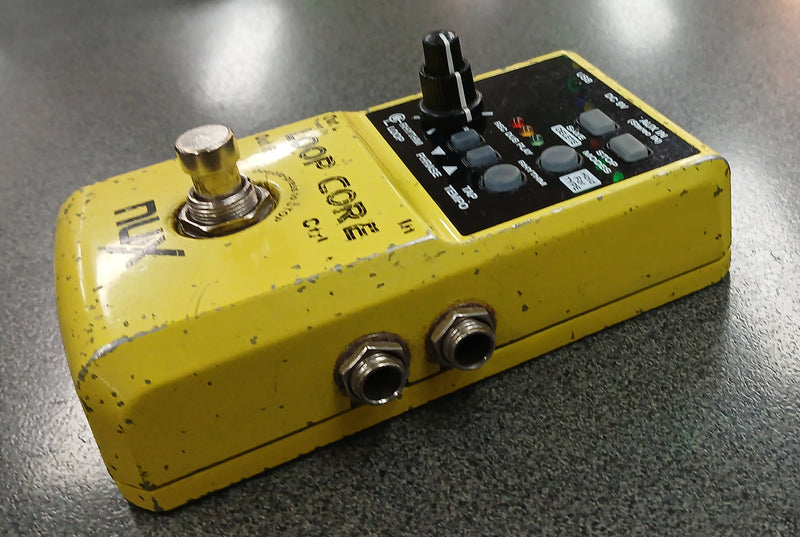

Heavy Wear and Cosmetic Damage All functions working as they should.
No power supply

The NUX Loop Core has a "land mine" format with an eye-catching yellow casing and a black control panel, offering a considerable number of controls for its small size. The device has a recording capacity of six hours and lets you store up to 99 loops, and you can record in both mono and stereo.

Besides its main functionality as a looper, one of the highlights of the device is a drum machine with 40 different rhythm patterns. A small display shows the current memory slot or the number of the selected drum pattern. At a closer look, the protruding knob turns out to be two knobs in one, allowing you to adjust the volume of loop and rhythm separately.

Connections and Expansions

Inside the Loop Core's casing, you'll find a connection for your guitar or bass on the right side and next to it a connection for an external pedal to operate the tap-tempo function, for example. On the opposite left side, the device has two large jack connectors as a stereo output, of which the left channel is also used as a mono channel.

On the front side, the NUX Loop Core has a USB port to connect it with your computer, a small jack aux input, as well as a 9 V DC power supply connector. You can use the aux input for playing backing tracks from an external player as well as a stereo input. The USB mini-B port allows you to drag and drop loops from your computer.

Unfortunately, the matching power supply for the Loop Core is not included and must be purchased separately. However, the device can also be powered by a 9 V block battery. By the way, there is no power button on the Loop Core; instead, you switch it on by plugging a cable into the left output.

Here is an overview of the connections:

• 1x input for instruments (large jack)

• 1x aux input/stereo input (small jack)

• 1x stereo output (2x large jack, L/Mono + R)

• 1x pedal jack (large jack)

• 1x USB mini-B port

• 1x power supply port (9 V DC 300 mA center negative, not included!)
